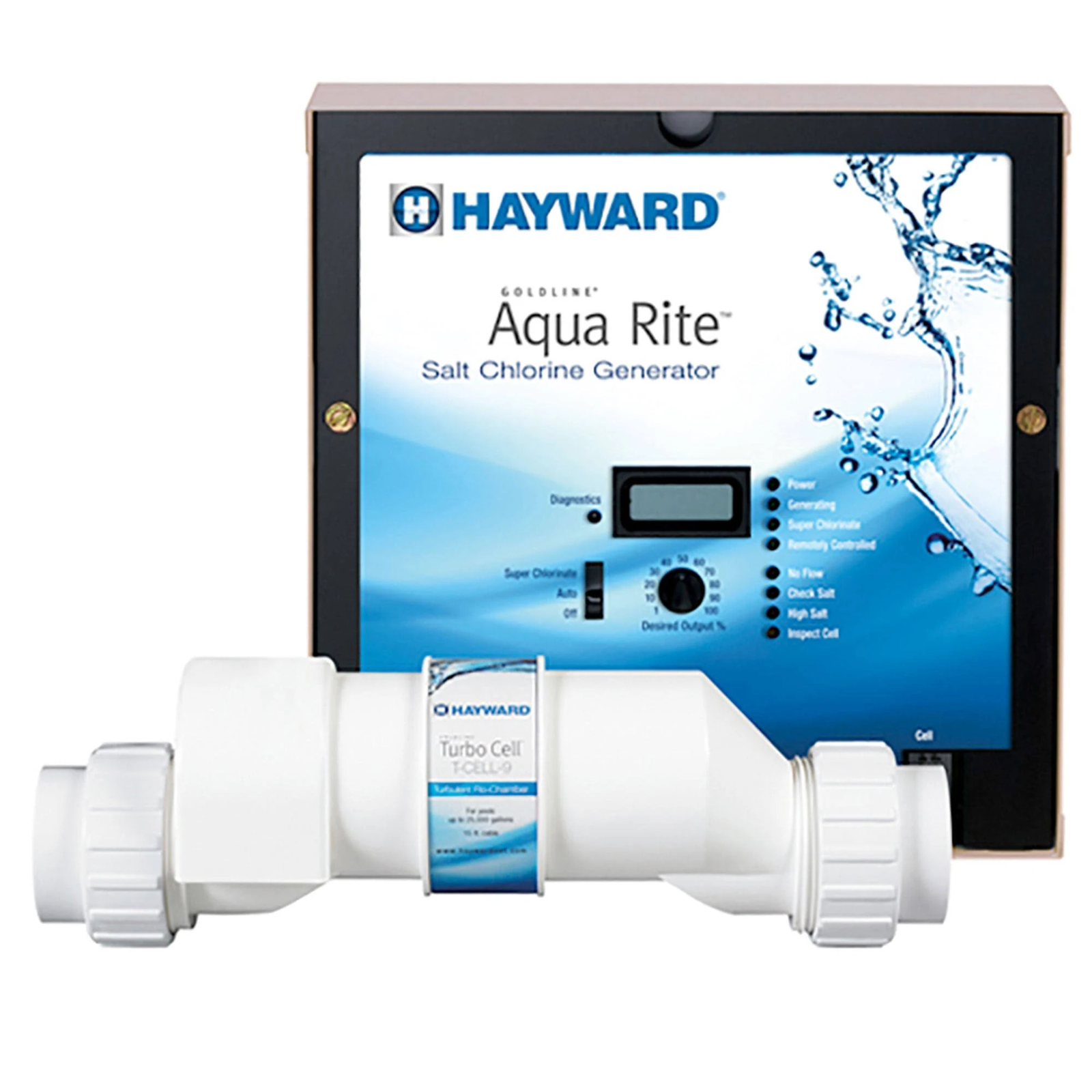

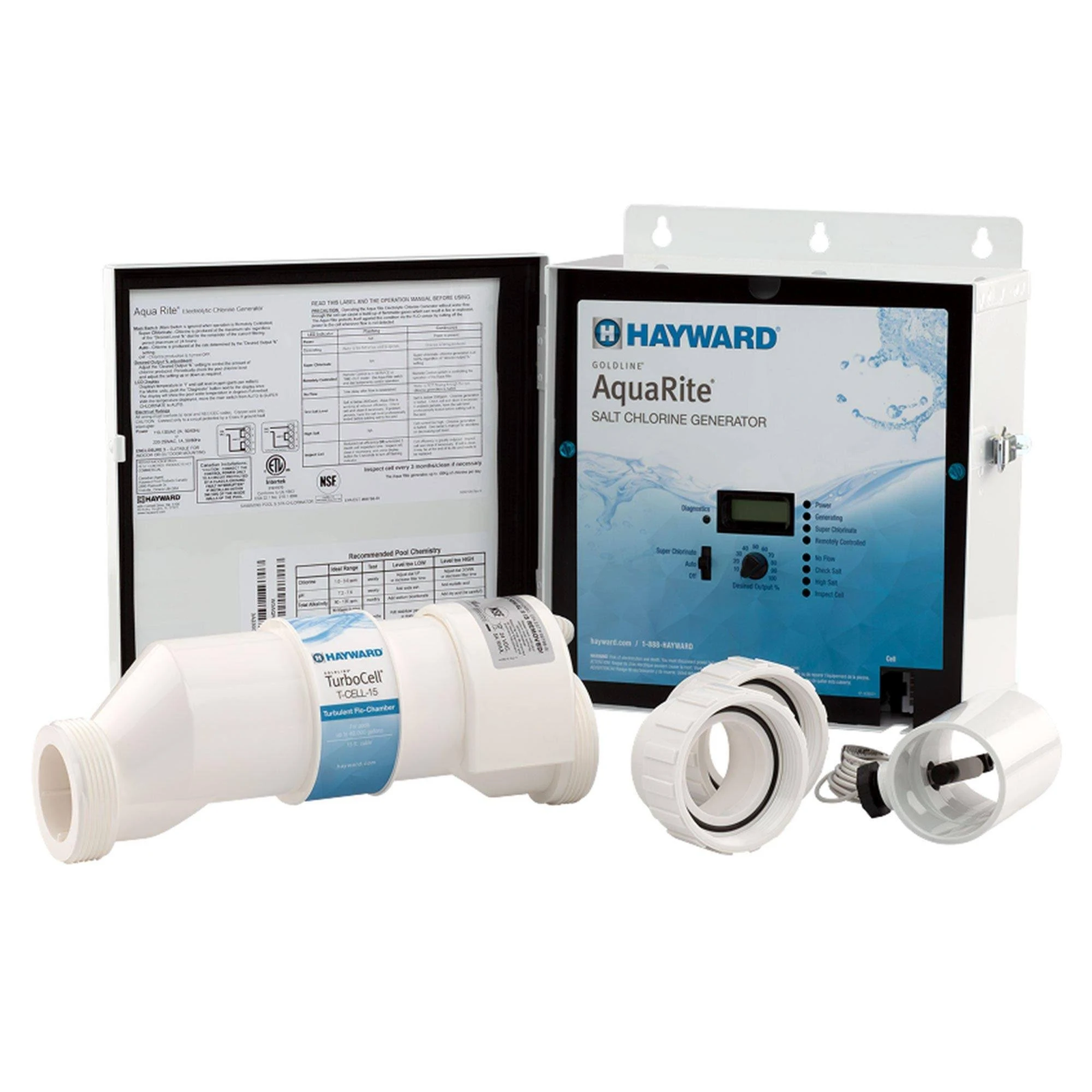

AquaRite Salt Hayward

Product Description

The Hayward AquaRite Electronic Salt Chlorination System represents the industry standard in automated residential pool sanitization. This premium system eliminates the constant hassle of handling, measuring, and storing traditional chemical liquid or tablet chlorine. Utilizing advanced electrolytic technology, it automatically converts ordinary dissolved pool salt into a continuous, self-renewing supply of pure, highly effective chlorine. The result is exceptionally clean, clear, and safe pool water that possesses a distinctively soft, silky texture. This specialized process dramatically reduces red-eye irritation, dry itchy skin, chemical odors, and harsh bleaching effects on fabrics and pool liners, delivering a truly luxurious swimming experience.

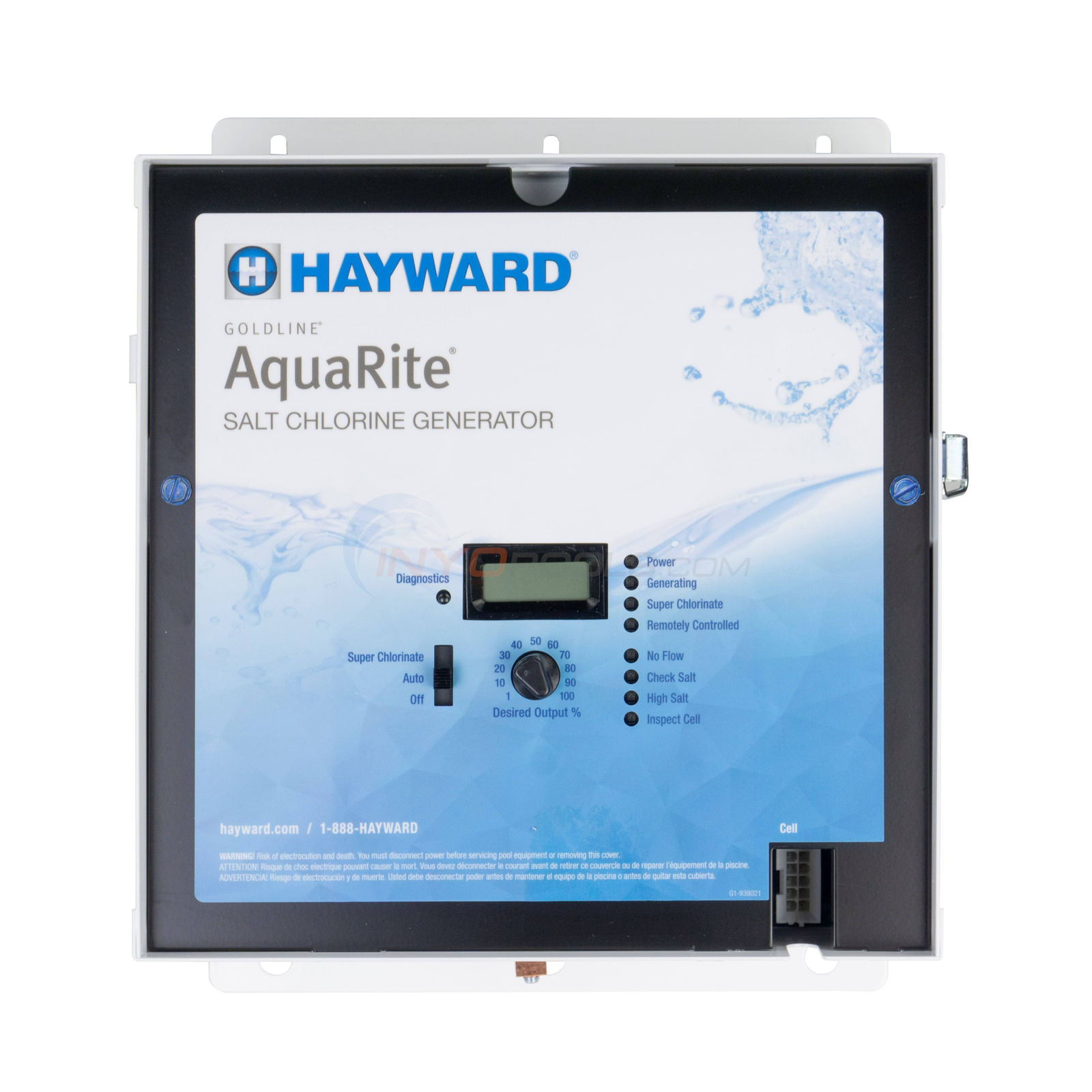

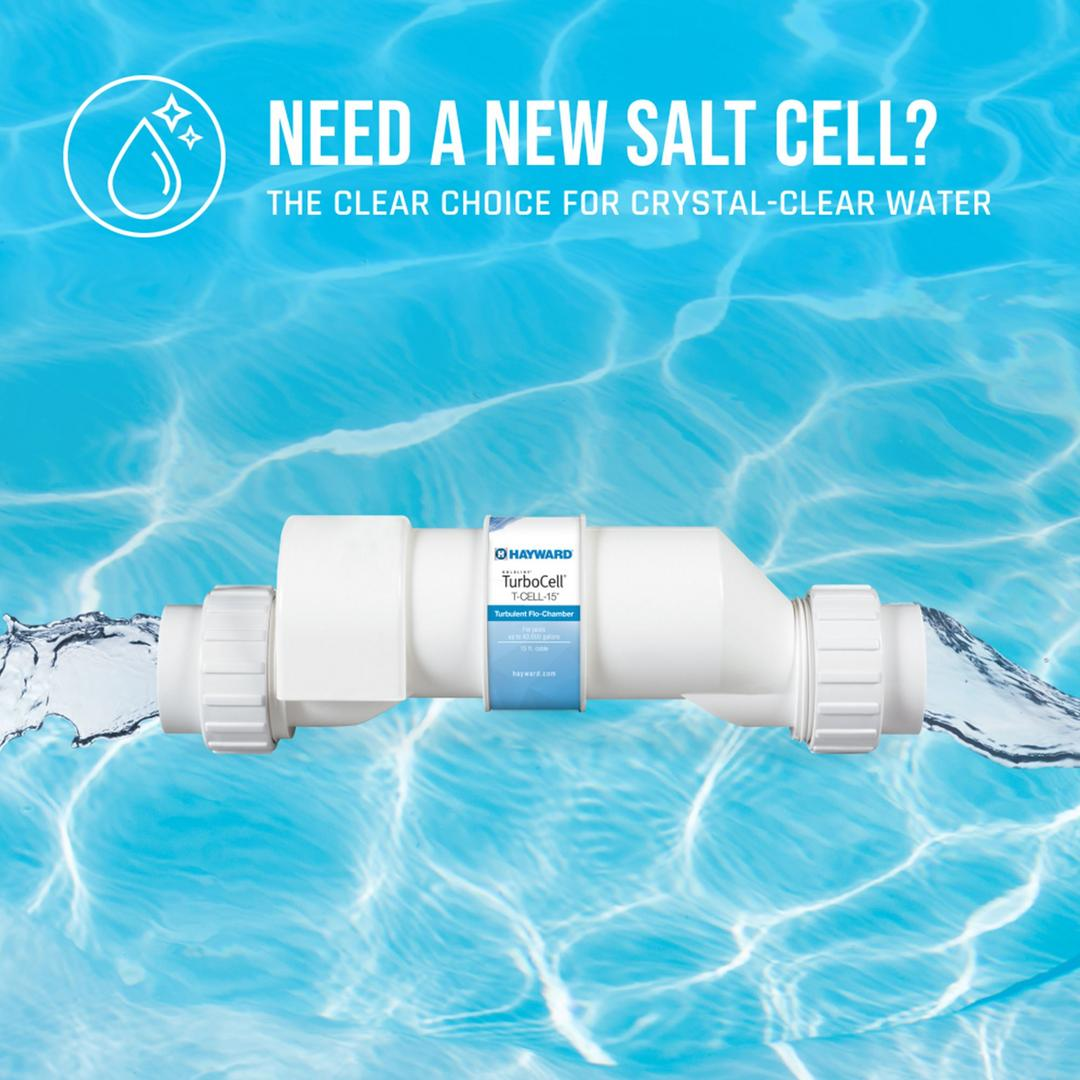

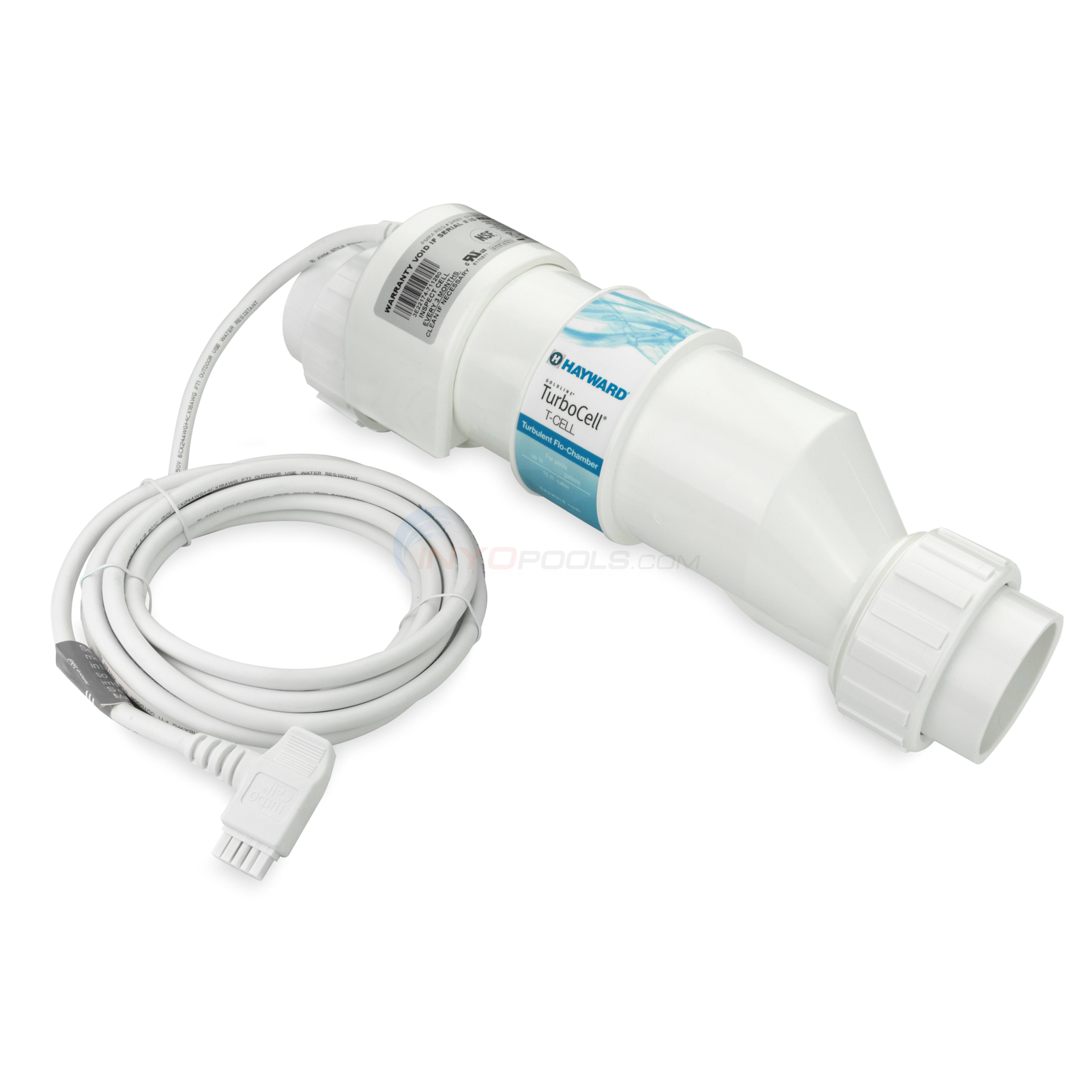

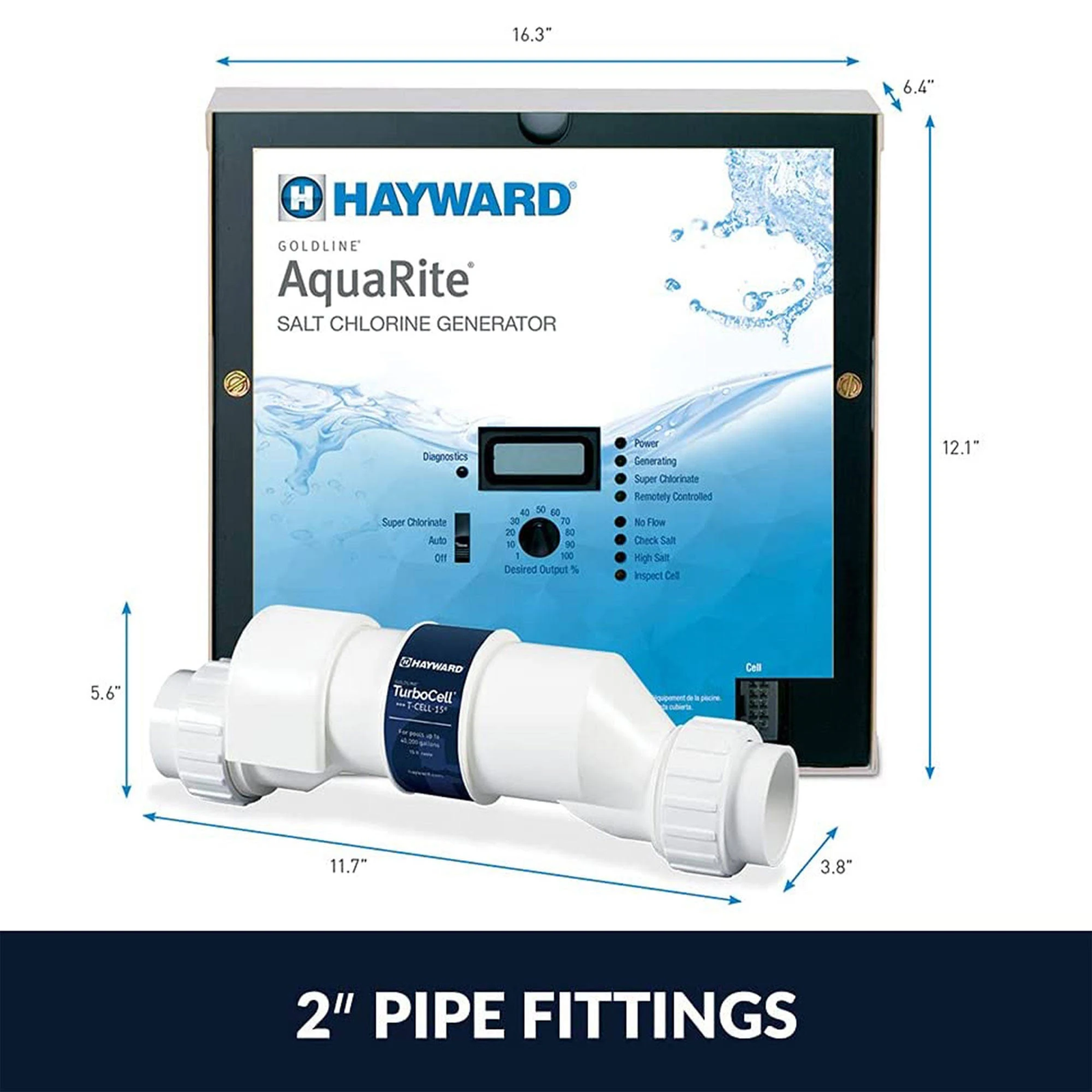

The AquaRite system is engineered for simple, intuitive homeowner operation and seamless integration behind existing pool equipment without the need to drain the pool water. It features a heavy-duty, locking microprocessor-based control panel enclosed in a weatherproof housing suitable for harsh outdoor environments. The digital user interface provides real-time diagnostic performance metrics and precise chlorine production control adjustable from 0 to 100%. Utilizing Hayward’s patented, transparent TurboCell technology, water passes through an interior electrolytic grid where a safe electrical charge performs the sanitation cycle before returning clean water evenly via the pool jets. The system features advanced automated reverse-polarity technology, which periodically switches electrical currents to clean the titanium cell electrodes automatically, preventing mineral scale accumulation and maximizing operational lifespan.

Technical Specifications

• Product Type: Electronic Salt Water Chlorine Generator

• Pool Type Compatibility: Residential In-Ground Pools (Plaster, Pebble, Vinyl, and Fiberglass)

• Chlorine Output Production: Up to 1.45 lbs of pure chlorine per 24-hour cycle

• Operating Salt Concentration Range: 2400 ppm to 3400 ppm (Ideal Target: 3200 ppm)

• Input Voltage Compatibility: Dual Voltage 120VAC / 240VAC (50/60 Hz single-phase input)

• Output Control Range: Adjustable 0% to 100% dial or digital incremental output adjustments

• Enclosure Type: Heavy-duty, weatherproof locking NEMA-rated enclosure box

• Self-Cleaning Technology: Automatic self-cleaning cell functionality via periodic reverse polarity

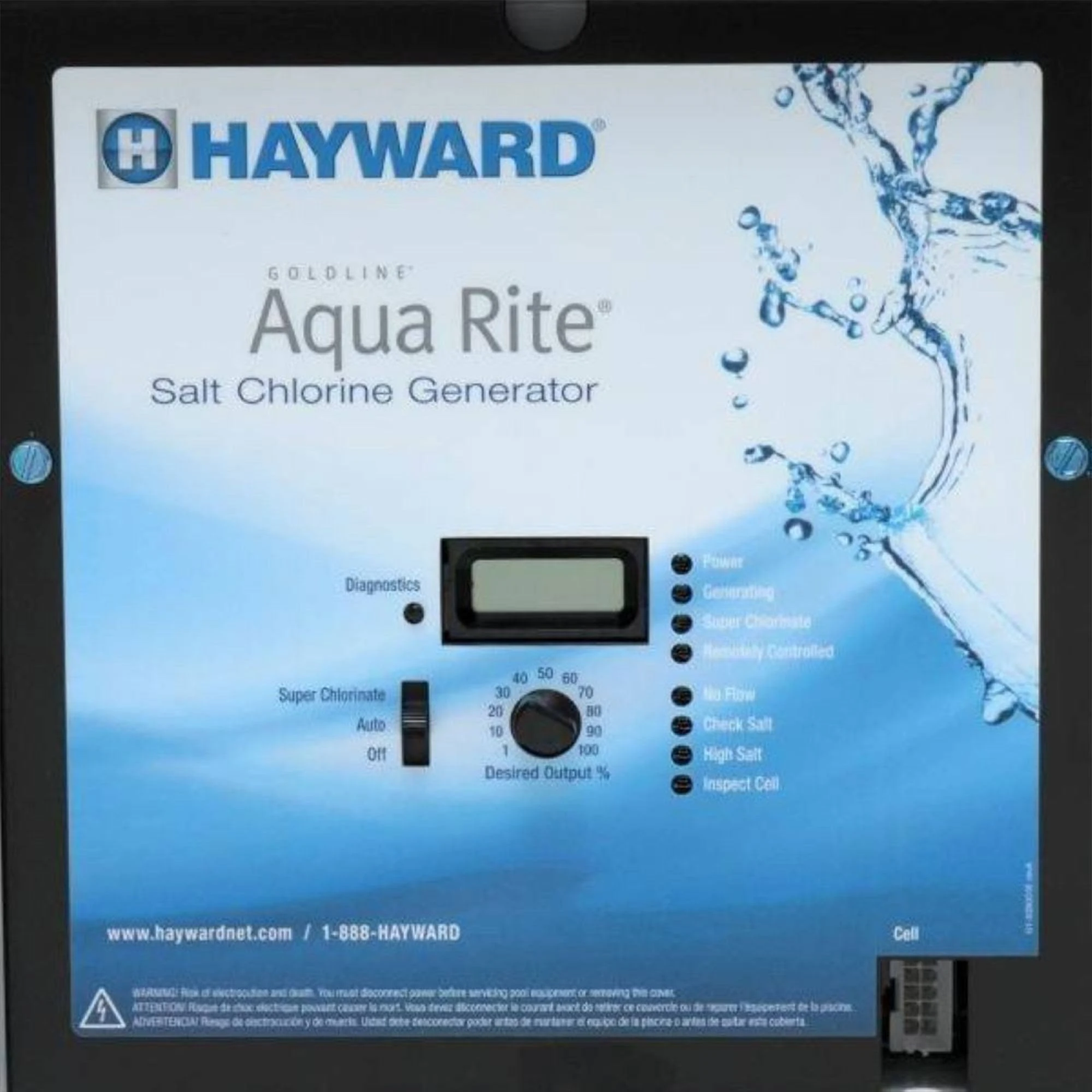

• User Interface Display: Digital LED/LCD display panel displaying salt level, water temperature, and system status

• Diagnostic Capabilities: 8 structural diagnostic indicator lights (Power, Generating, Super Chlorinate, Remote Control, No Flow, Check Cell, High Salt, Inspect Cell)

• Special Functions: “Super Chlorinate” mode for heavy bather loads, heavy rainfall, or thermal spikes

• Water Temperature Limitations: Safety auto-limiting output (10% production maximum between 50°F to 60°F; absolute automatic safety shut-off under 50°F)

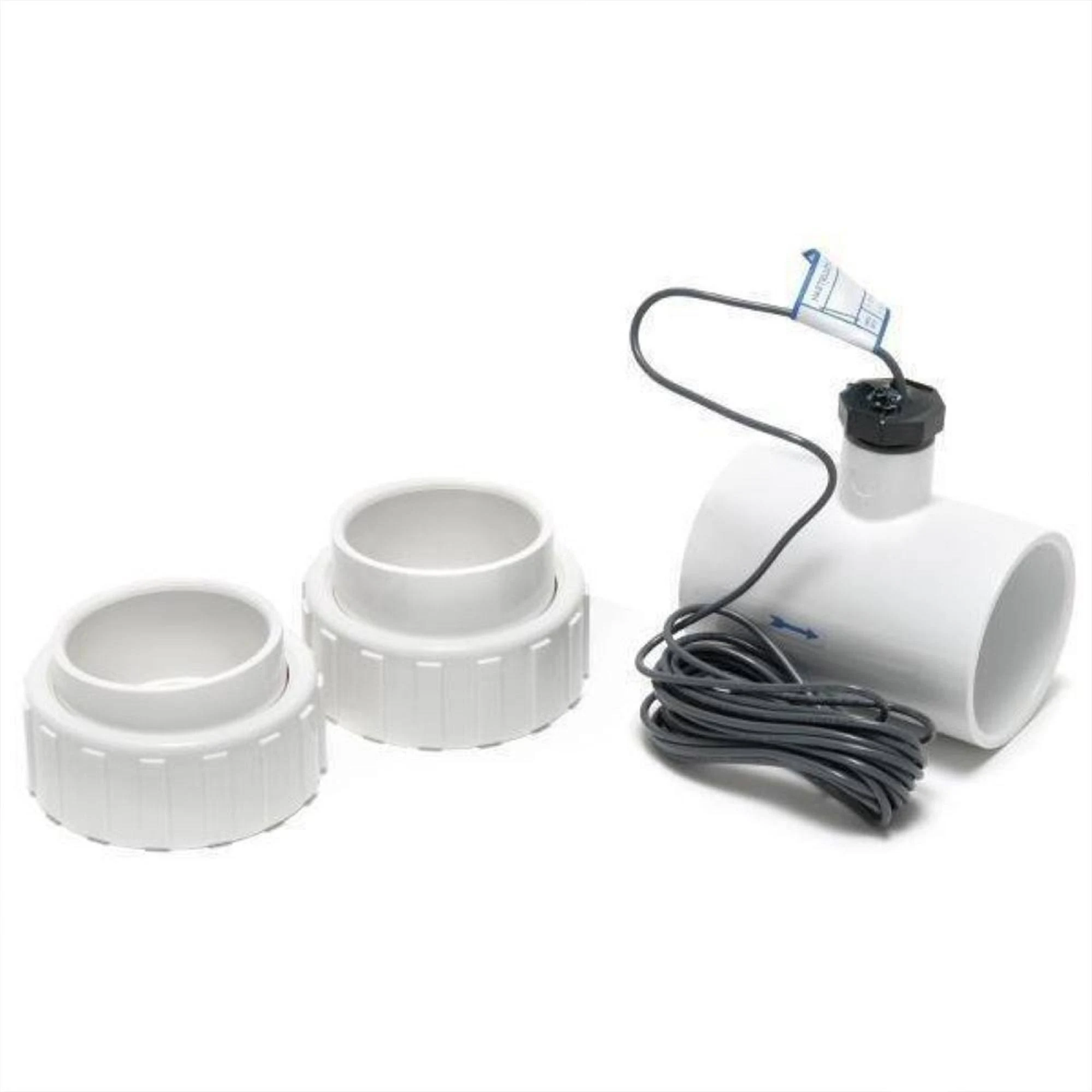

• Flow Sensor Integration: External integrated safety flow switch with independent plumbing tee attachment

• Plumbing Requirements: Fits standard 2-inch PVC plumbing lines via high-pressure 2-inch quick-disconnect union fittings

• Certification Standards: National Sanitation Foundation (NSF) certified for precise delivery rates, UL Listed, and ETL Safety Certified
