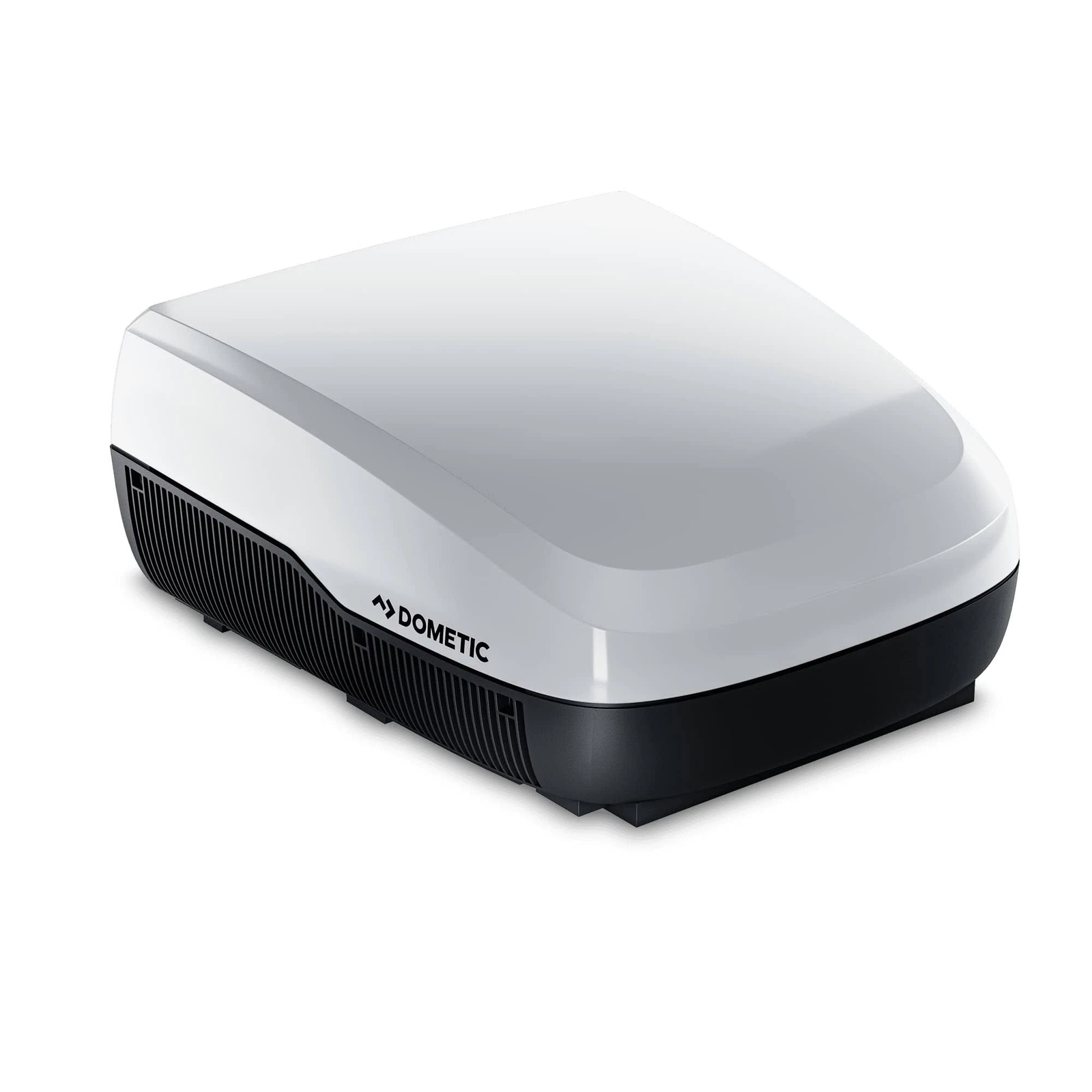

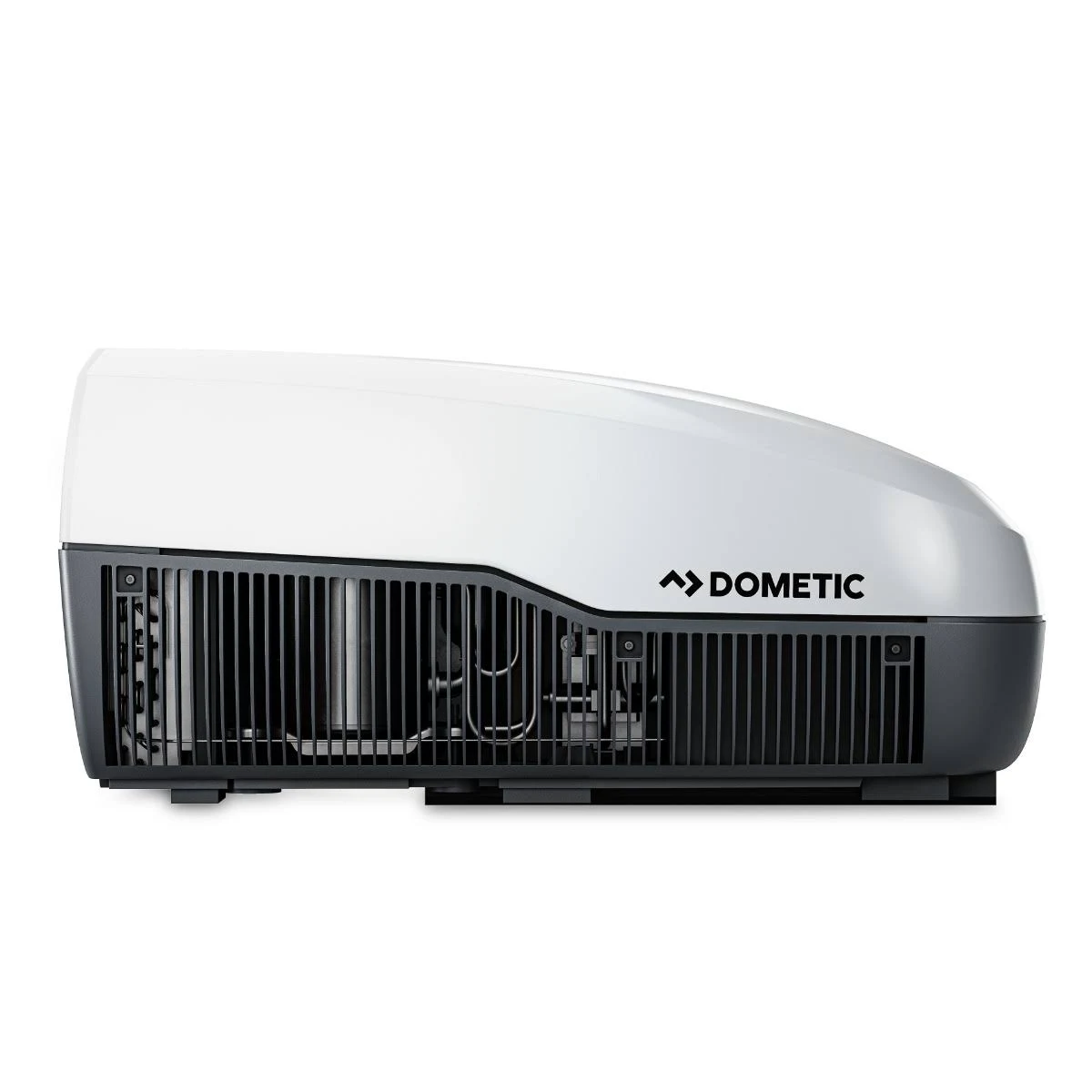

Dometic FreshJet 3 RV Air Conditioner

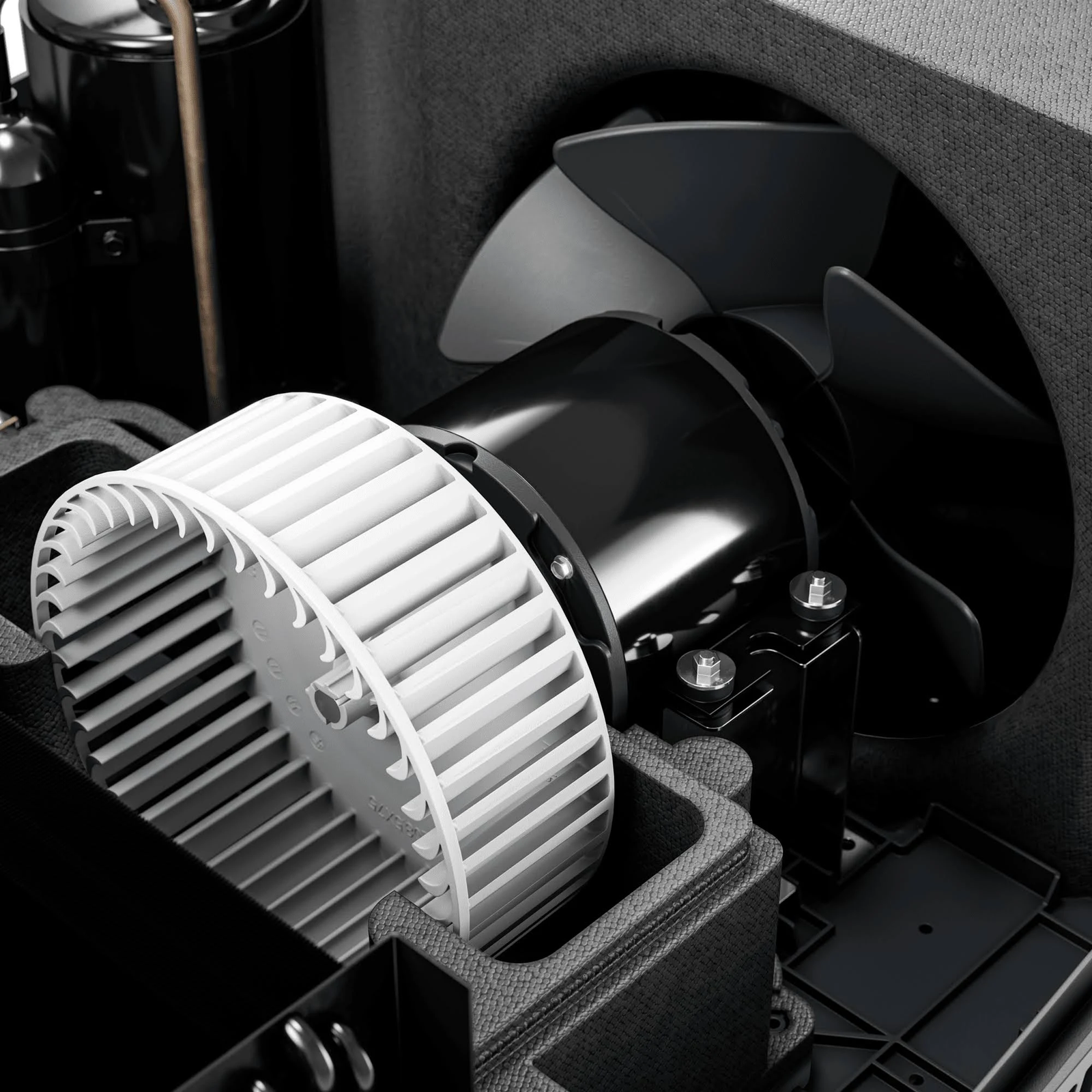

The Dometic FreshJet 3 RV Air Conditioner represents the next generation of rooftop climate control engineered specifically for recreational vehicles, motorhomes, and specialty trailers. This innovative rooftop unit delivers a superior cooling experience by maximizing raw performance while dramatically lowering operational noise inside the vehicle cabin. Utilizing an advanced coil design and a custom blower system, it provides powerful, uniform temperature distribution from front to back, eliminating typical hot spots in record time.

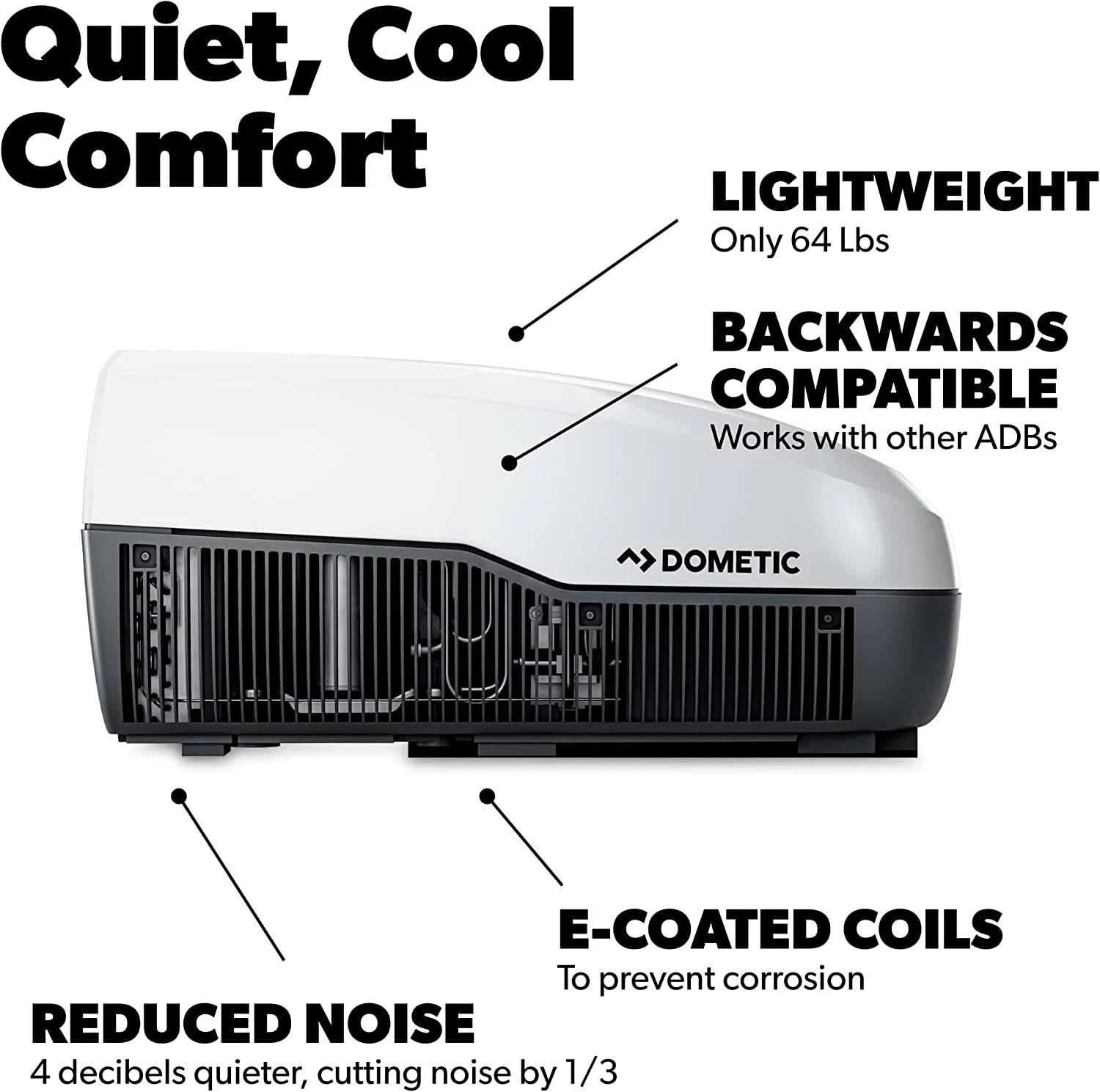

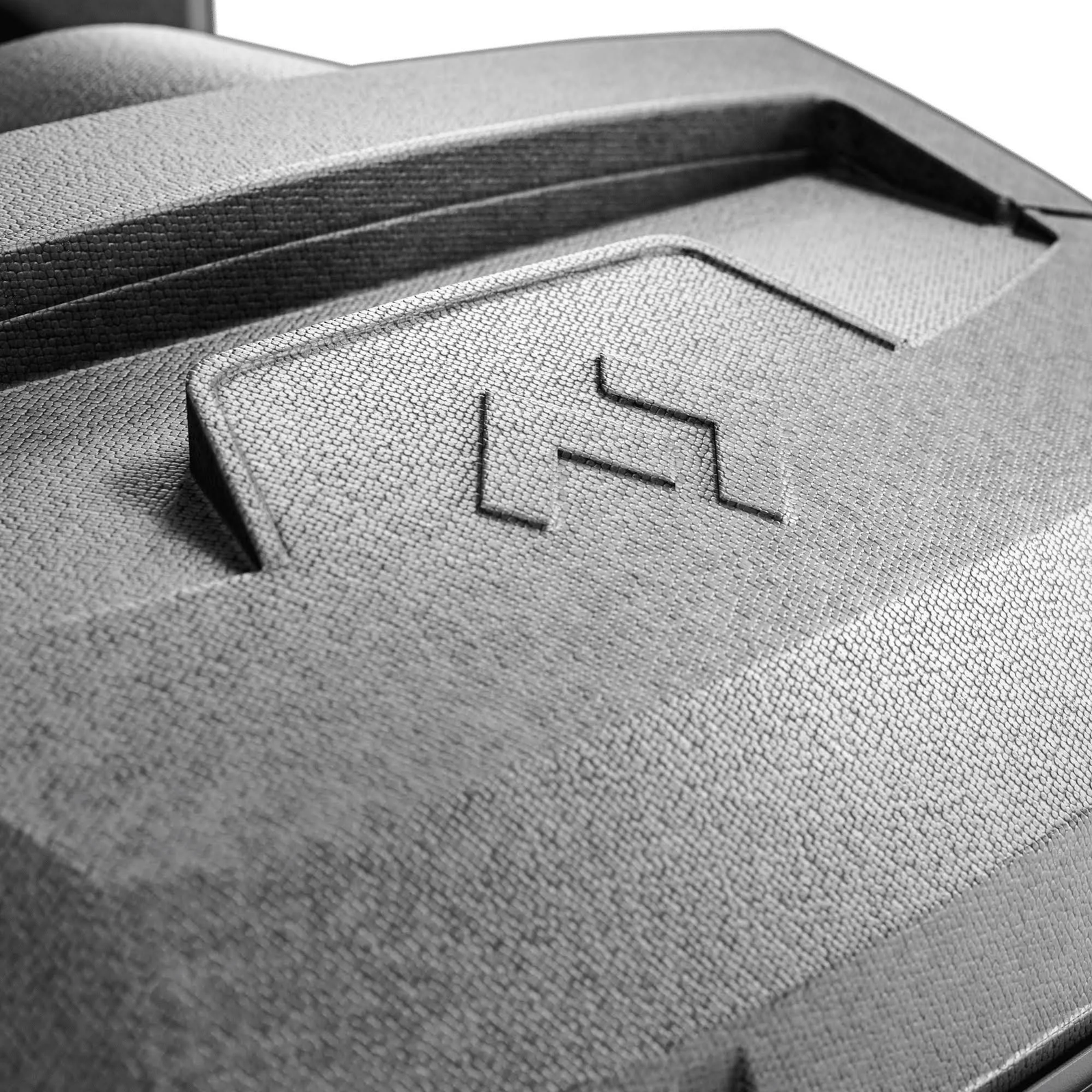

Engineered with structural efficiency in mind, the FreshJet 3 features a lightweight composite base pan and an expanded polypropylene (EPP) closed-cell foam inner structure. This specialized construction provides superior impact resistance, added thermal insulation, and an impressive weight reduction compared to legacy models, reducing the weight load on your RV’s roof. The exterior shroud boasts a sleek, aerodynamic profile with hidden assembly screws and no exposed ventilation holes, blending seamlessly with modern coach aesthetics while resisting harsh environmental conditions. For long-term reliability, the evaporator coils are premium e-coated to resist corrosion and preserve peak thermal efficiency over seasons of travel.

Designed as a hassle-free upgrade or replacement unit, the FreshJet 3 is fully backward-compatible with standard 14 by 14-inch RV roof cutouts and uses universal bolt patterns. It supports both ducted and non-ducted mechanical configurations, allowing owners to connect it directly to existing ducted distribution systems or pair it with an independent air distribution box. With an eco-conscious design that utilizes up to 28% less refrigerant, this system maximizes BTU output per amp-hour, making it highly efficient whether running on shore power or a portable generator.

Technical Specifications

• Cooling Capacity Options: 13,500 BTU/hr or 15,000 BTU/hr

• Airflow Output: Up to 330 CFM (Cubic Feet per Minute)

• Operating Noise Level: 58.5 dB (Up to 4 dB reduction compared to standard units)

• Input Voltage: 115V – 120V AC, 60 Hz

• Control Voltage Requirement: 12V DC (for electronic thermostat operations)

• Power Consumption: Approximately 1,665 Watts

• Rated Running Current: 13.6 Amps – 15.0 Amps (depending on BTU variant)

• Refrigerant Type: R-32 or R-410A (Sustainably optimized)

• Roof Cutout Requirements: Standard 14 inches x 14 inches opening

• Rooftop Unit Dimensions: 29.6 inches (Length) x 27.6 inches (Width) x 13.8 inches (Height)

• Net Weight: 64.3 lbs

• Chassis Material: Custom molded composite base pan with EPP bead foam insulation

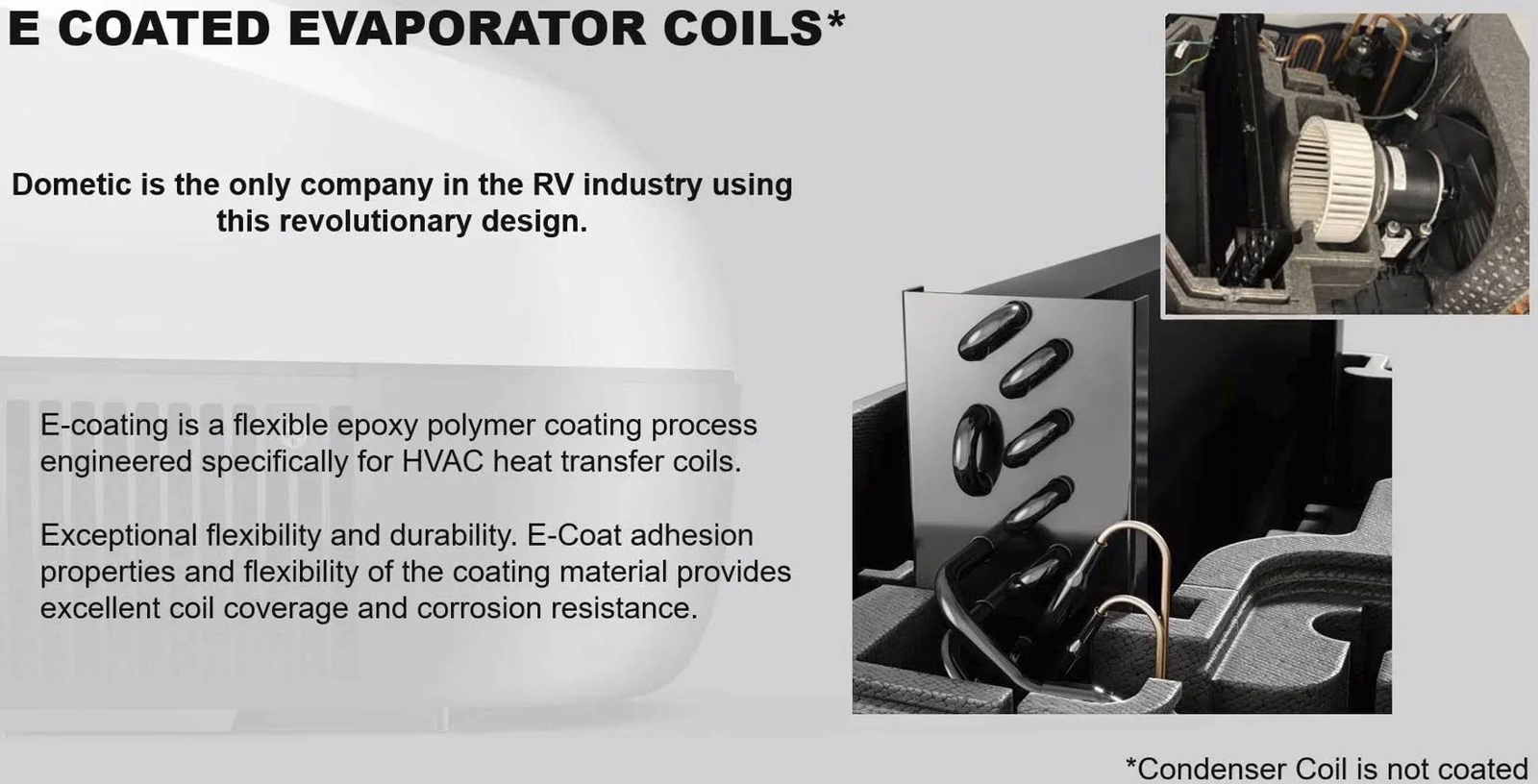

• Coil Protection: Anti-corrosive E-coated evaporator coils

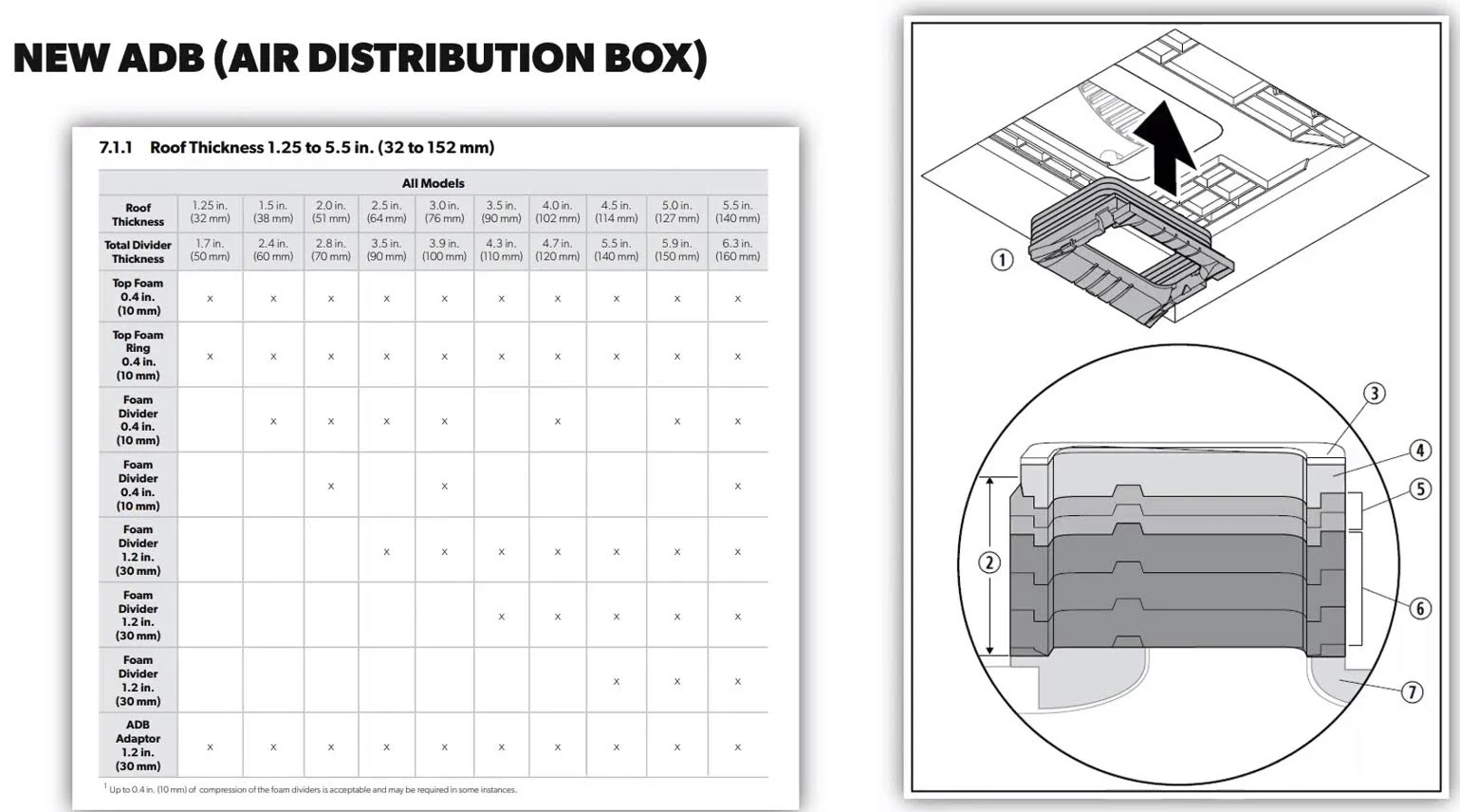

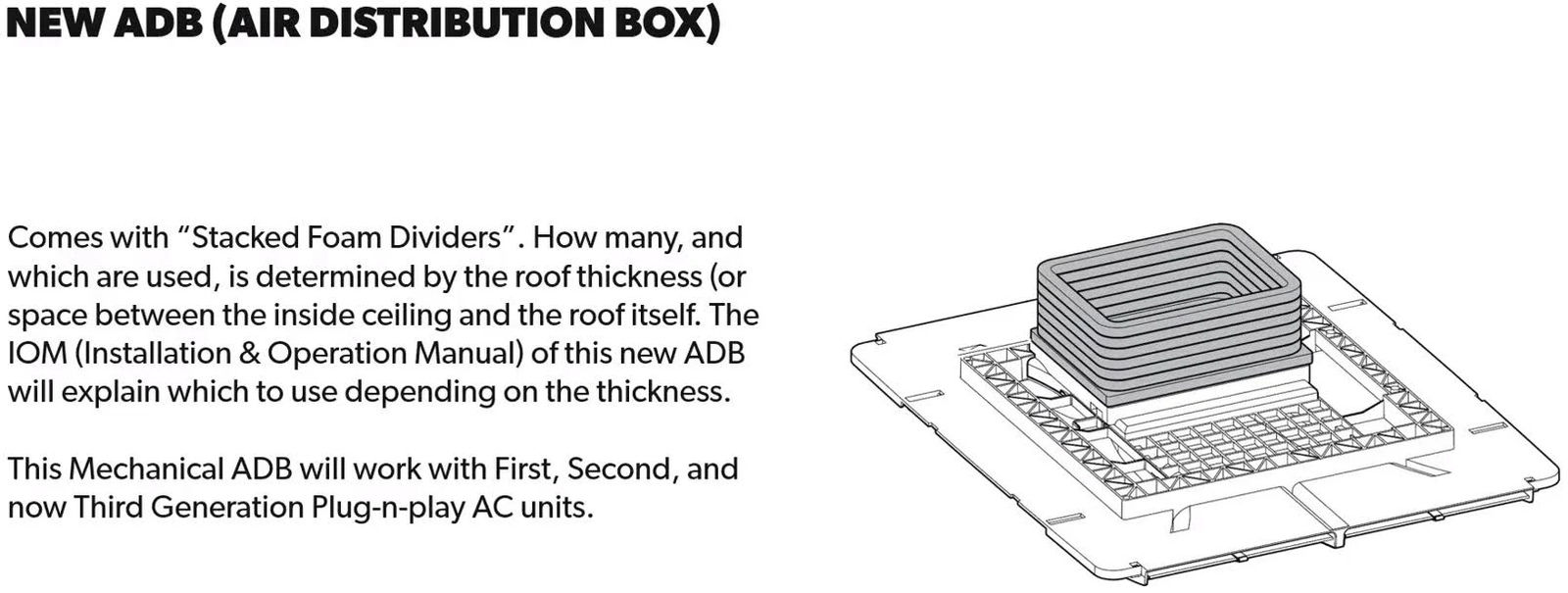

• Distribution Compatibility: Dual compatibility (Ducted systems or Non-Ducted Air Distribution Boxes)

• Thermostat Compatibility: Dometic Single Zone CT thermostat, Multi-Zone CCC2, or approved manual control kits

• Certifications: cCSAus / CSA Certified
